YADA LUMINESCENT® Photoluminescent
PVC sheet
YADA-PVC series photoluminescent sheet is a kind of hard plastic board with non-toxic
and harmless and no radioactivity. It belongs to long after-glowing display
board with excellent comprehensive advantage.
Advantages: 1.Made of Flame retardant plastic material ,fire resistance,more good Fire safety performance. 2. Board Surface suitable for UV flatbed Printable ,Screen printable. 3. The Surface is Waterproof, dirty-resistant and easy to clean. 4.With stable physical properties ,good mechanical charactertic. 5.Dampproof Double-sided plastic backing paper ,No fold. 6.Non-toxi , radioactive free, Eco-friendly.

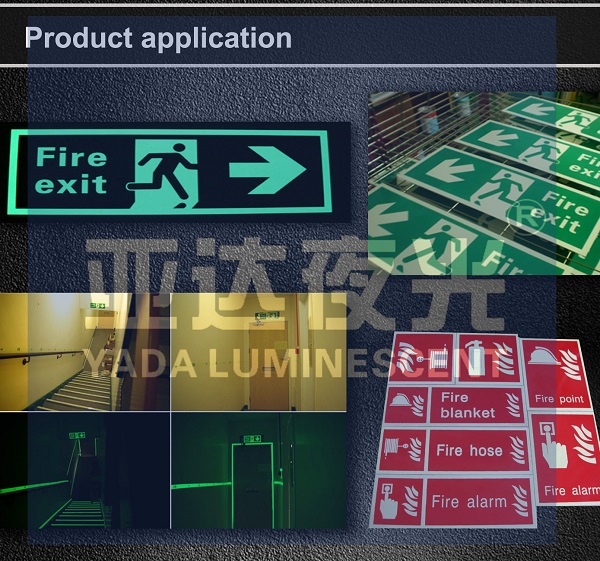

Application field
They
are widely used in the ways of vessel, vehicle, underground, channels, fire
fighting etc.and they also can be made into varied kinds of marks,signs and
decoration indoors
Certification: ROHS, ISO9001:2000

The Signs made by PVC-150
1.PVC platisc sheet(middle, high grade)
1).Photoluminescent Test of PVC-120Middle grade：
Excitant illuminance: 1000 Lux，5 minutes， TEMP:25 ° C 。
(initial brightness) ：14570mcd/m2
(1minute brightness) ：1584mcd/m2
(10minutes brightness) ：173.6mcd/m22
(30minutes brightness) ：49.8mcd/m2
(1hour brightness) ：20.39mcd/m2
2).Photoluminescent Test of PVC-150High grade：
Excitant illuminance: 1000 Lux，5 minutes， TEMP:25 ° C 。
(initial brightness) ：26560mcd/m2
(1minute brightness) ：2865mcd/m2
(10minutes brightness) ：297.3mcd/m22
(30minutes brightness) ：81.52mcd/m2
(1hour brightness) ：33.3mcd/m2 According to DIN67510;ISO:17398 and PSPA requirements
======================================================================================================
YADA LUMINESCENT® Photoluminescent PMMA Acrylic Board

2.PMMA Acrylic plastic sheet(super grade)----- Top class choice of photoluminescent board
3).Photoluminescent Test of PMMA Acrylic Super grade：
Excitant illuminance: 1000 Lux，5 minutes， TEMP:25 ° C 。
(initial brightness) ：25470mcd/m2
(1minute brightness) ：3744mcd/m2
(10minutes brightness)：551.6mcd/m22
(30minutes brightness)：222.8mcd/m2
(1hour brightness)：138.3mcd/m2

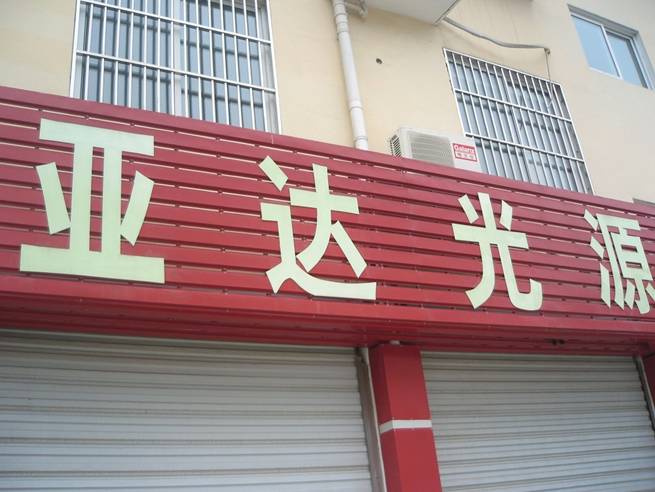

The DayTime

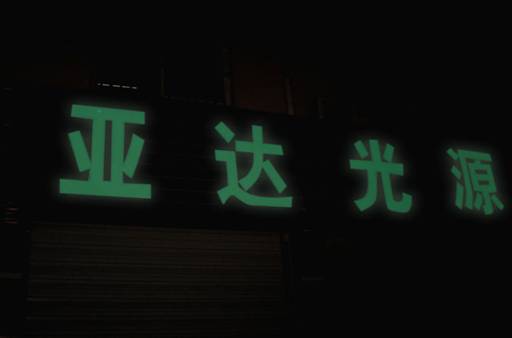

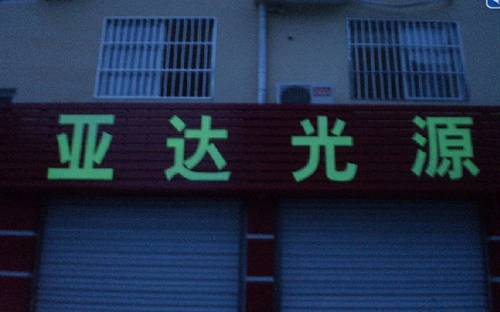

Sunset Before dawn
|
